Tanks & Silos for Fuel, Chemicals, Oil &
Gas Products
|
|||||
 |

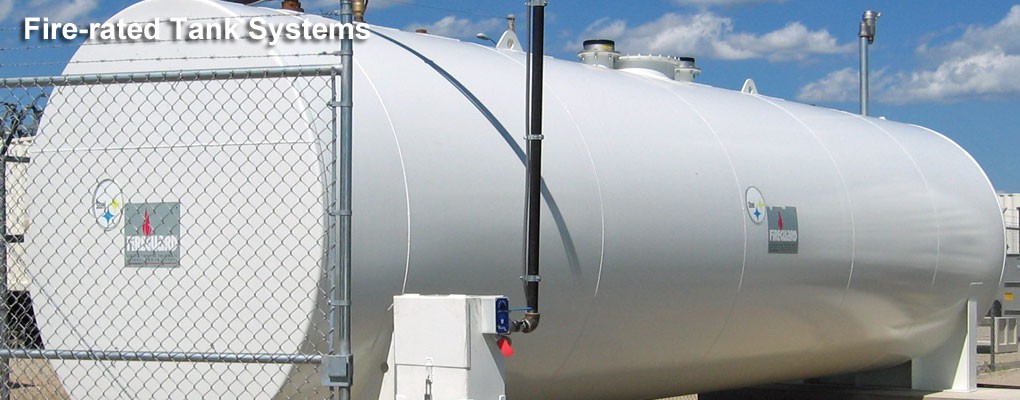

Fireguard® double-wall fire-protected aboveground storage tank features an inner and outer steel tank with a minimum of three inch unique lightweight thermal insulation material that exceeds the UL-2085 2-hour fire test. Insulating material is 75% lighter than concrete, reducing shipping, installation and relocation costs. Fireguard® Tanks are lightweight and come with a 30-year limited warranty. The high efficiency insulation protects the inner tank in the unlikely event of a fire or extreme heat. It is porous to allow fluid migration through the interstice to the monitoring point! |
||||
 |
|
||||
 |
API-12F Shop Welded Tanks Strict quality control assures that each tank is manufactured with A-36 (commercial quality) 3/16 and 1/4 inch steel. Tanks are interior and exterior welded to API specifications and pressure tested. |
||||
 |
F921® aboveground storage tanks are manufactured with a double-wall steel design. Standard features include built-in, testable, interstitial monitoring capability and impermeable secondary containment. The F921® tank delivers uncompromising performance, reliability, service and economy. F921 Tanks are lightweight and come with a 30-year limited warranty. |
||||
 |
UL 142 Single-wall and doublewall tanks are manufactured per UL142 fabrication standards. These tanks are labeled and designed for storing flammable and combustible liquids. Manufactured as horizontal or vertical, the tank can be cylindrical or rectangular, using carbon or stainless steel. Tank capacities up to 50,000 gallons are available in single or multi-compartments.
|
||||
 |
Frac Tank Systems Frac tanks are ideal for on-site storage of liquid waste including run-off water, diesel fuel, glycol, oils, ground water storage, de-icing fluid, waste products and more for manufacturing facilities, construction sites, wastewater treatment facilities, chemical facilities, drilling sites and airports. Frac tanks are easily hauled using a roll-off truck or trailer. Available in a variety of models and sizes. |
||||
 |
Day Tank Systems Day Tank systems are integrated generator fuel supply sources available from 25 to 1000 gallon capacity. Standard equipment includes: UL Listed double wall fuel tanks Fluid level and leak detection sensors Inlet flow control valves and accessories Engine supply and return connections Normal and emergency vent devices Direct read gauges and inspection ports |
||||
 |
Mobile Tank Systems These trailers are designed for refueling vehicles and equipment on site. Various specifications allow the trailers to be used for either transport of fuel on public roads or for transport and static refueling on location. |
||||
|
Tank Inspections Acterra provides aboveground tank inspections through the Steel Tank Institute's SP001 Standard Inspection of aboveground storage tanks (ASTs) can be a critical compliance issue under the planning requirements of the U.S. Environmental Protection Agency’s rule for Spill Prevention Control and Countermeasure (SPCC). Steel Tank Institute in 2000 released the first version of Standard for the Inspection of Aboveground Storage Tanks – the STI SP001 standard – which provides a means for AST owners to comply with EPA mandates. The standard, now in its fifth edition, has been updated by consensus of tank owners, tank manufacturers and other industry leaders. |
|||||
|
Contacts: |
|||||
Flameshield® aboveground storage tanks are
manufactured with a tight-wrap double-wall design. Standard features include
2-hour 2000° fire-test, as required by Southwest Research Institute
Standard SwRI 97-04, validates performance of non-insulated tanks , built-in secondary containment and
interstitial monitoring capability. Flameshield® Tanks are lightweight and
come with a 30-year limited warranty.
